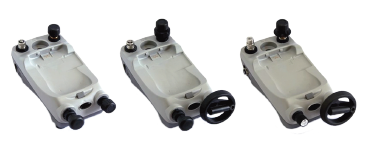

PV624便携式自动压力控制器

GENii 高性能模块化校验系统组件

PV624采用德鲁克压力控制算法，使在设定点的控压更加稳定、快速、简便。同时它也具备高水平的带载能力，高性能电池也使其在现场使用时具备更长的续航时间。坚固耐用的机械结构设计和快速压力接口使您的现场压力测试与校准工作更加轻松、高效。PV624是DPI620的基座升级版。

特点

支持PM620/620T系列可互换压力模块。

内置高精度气压计，支持模拟表压/模拟党压测量

造压范围:-90kPa表压至2MPa表压支持手动造及高带载能力的自动造压自动造压并精确稳压至设定压力点

快达压力接口

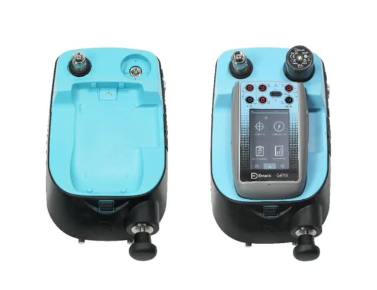

支持与DPI620G的物理连接或蓝牙连接

电池组可在现场使用时轻松更换

校准程序和校准数据可通过校准助手软件轻松储存.

Calibration procedures

Test procedures can be created and stored using theautonomous"Calibration Wizard". A single test proceduretemplate can be run on multiple devices with live pass/failerror analysis and results for each device saved individuallyin the internal storage of the DPI620G that can be locallyviewed or transferred to a PC to support traceability.With the test results exported to a PC, the data can be sortedor Druck provides a Calibration Certificate template forpressure to electrical device calibrations, which transformsthe results into a formatted professional-look certificateready for printing or filing.

The PV624is also compatible with Druck's 4Sight2 calibrationmanagement software that provides full visibility of all yourassets and reference standards with calibration workloadscheduling, track and trace calibrations, historical trending anddrift analysis features to drive process efficiency and time saving。

Pneumatichoses

A pneumatic hose rated to 35 bar (508 psi). The hoseconnects directly to the PV624 pressure port and replicatesthe quick fit connection for compatibility with the standardadaptors supplied and the adaptor kits.

P/N IOHOSE-NPl: 1m/3.28ft pneumatic hose kit

P/NIOHOSE-NP2: 2m/6.56t pneumatic hose kitP/NIOHOSE-NP3: 3m/9.84ft pneumatic hose kit

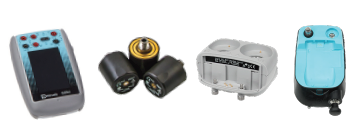

Pressureconnection。

A set oftest point adaptors to connect the tool-less quickfit PV624 pressure port or the extension hoses to the deviceunder test

P/N I0620-BSP: G/8 male and l/4 male, G/4female, G3/8female and G1/2 femaleP/N I0620-NPT:1/8"NPT male and 1/4” NPT male, 1/4” NPTfemale, 3/8”NPT female, and 1/2”NPT femaleP/N I0620-MET: 14 mm female and 20 mm female。
